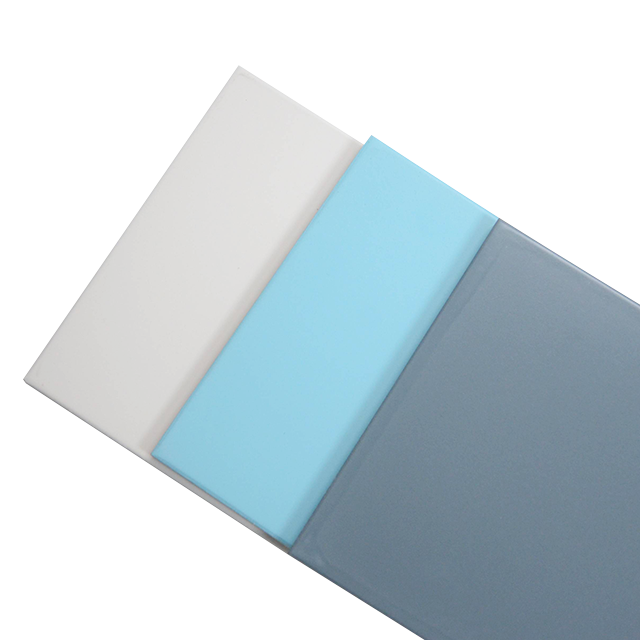

1. Flat sticker Board:
The leader substrate of the flat veneer board is made of high-density inorganic fiber calcium silicate board, which is an environmentally friendly board that has been tested by testing institutions and can meet Class A fire prevention standards. PVC film is often used as a decorative finish, which is flat pasted onto the substrate through special processes. Wood grain, stone grain, cloth grain, and monochrome can all achieve a textured decorative effect.
2. Product Color:
Leader inorganic board is made by adding medical antibacterial coating on the basis of solid color board. All colors can be customized without any color restrictions. It can be customized according to the building material standard color, and there may be slight color differences. If suggested, the color can be determined first, samples can be mailed, and the final color can be selected for production.
3. Product advantages:
1. Environmental friendliness: The substrate of the flat veneer board is made of asbestos free calcium silicate board, and the decorative layer is made of special polyester. It is an environmentally friendly board suitable for residential or other indoor decoration.
2. Non combustible: The flat panel is made of non combustible A1 grade calcium silicate board as the substrate, which will not burn when exposed to fire, but will have a certain flame retardant effect.
3. Machinability: Cutting, sawing, and other processing can be carried out using ordinary processing tools.
4. Waterproof and moisture-proof: During the production process, a layer of back coating is applied to the back of the board, and the PVC film usually pasted on the surface is also waterproof and moisture-proof, so it will not breed bacteria in humid environments.

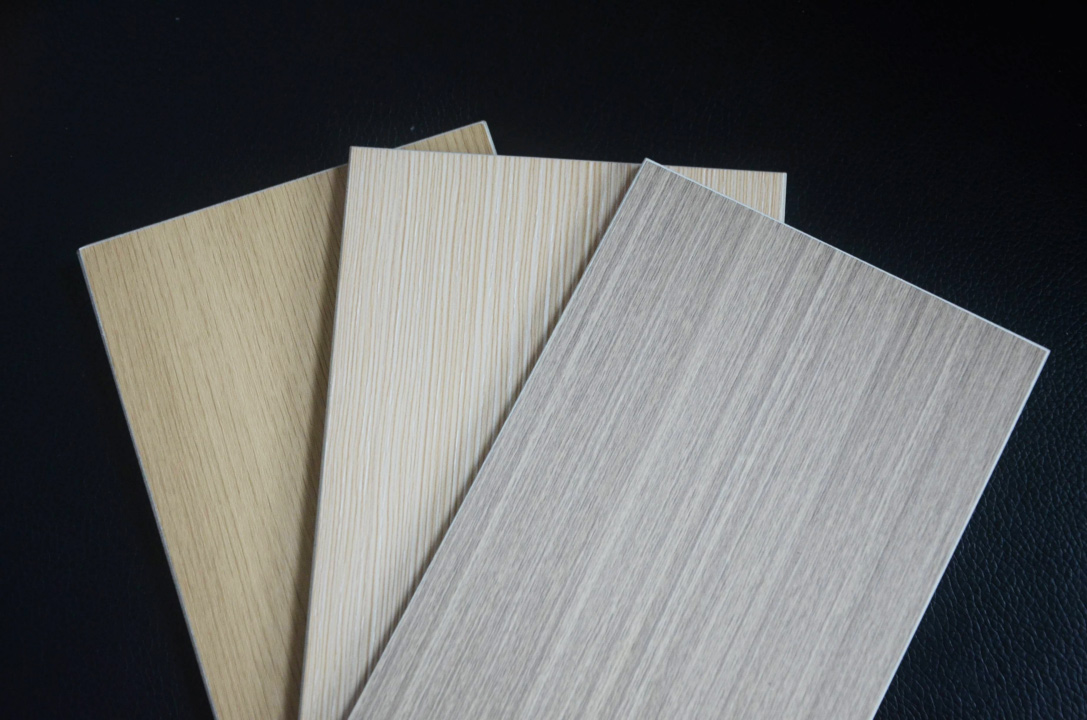

5. Decorative: The pattern of flat veneer board is rich and diverse, and can be used in various styles such as wood grain, stone grain, solid color, metal color, etc. It can replace decorative boards such as wood, stone, and ceramic tiles.
Raw Materials | natural fiber reinforced, quartz sand, cement |
Standard Size | 1220*2440mm; 1220*2750mm; 1220*3050mm; |
Thickness | 5mm-30mm |
Density | 1.2-1.50g/cm3 |
4. Attribute indicators
Attribute parameters | Performance index |
Swelling rate | ≤0.25% |
Water absorption rate | ≤30% |
Moisture content | ≤10% |
Thermal conductivity | ≤0.35W/(m.k) |
Impermeability | 24 hours, no water droplets |
Flexural resistance (saturated strength) | ≥13MPa |
Impact resistance strength | ≥1.4kJ/m2 |
Radioactivity | Internal irradiation index: IRa: 0.2 External irradiation index Ir: 0.2 |
Asbestos | 100% asbestos free |
Formaldehyde | 0 |
Non combustibility | 240 minutes |
Combustion performance level | A1 |
Freezing resistance | After 25 freeze-thaw cycles, there was no cracking or delamination observed |
Hot rain performance | After 25 cycles, there was no cracking or delamination observed |
Hot water performance | Flexural strength ratio ≥ 60% |
Soaking drying performance | After 25 cycles, the flexural strength ratio is ≥ 60% |
Characteristics | Advantages of waterproof, fireproof, moisture-proof, sound-absorbing, high flexural strength, easy installation, environmental protection, etc |

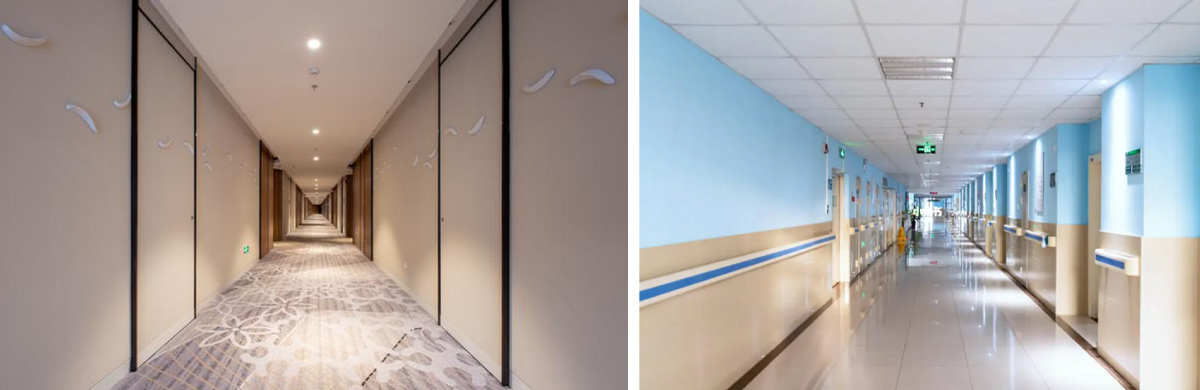

5、Applied range:
Flat panel is not only widely used in hospitals, office buildings, hotels, schools, factories, etc., but also commonly used in hospital corridors, wards, operating rooms, and other places that require high cleanliness and antibacterial properties
6. Installation method: adhesive method、Dragon bone installation
7. Certifications

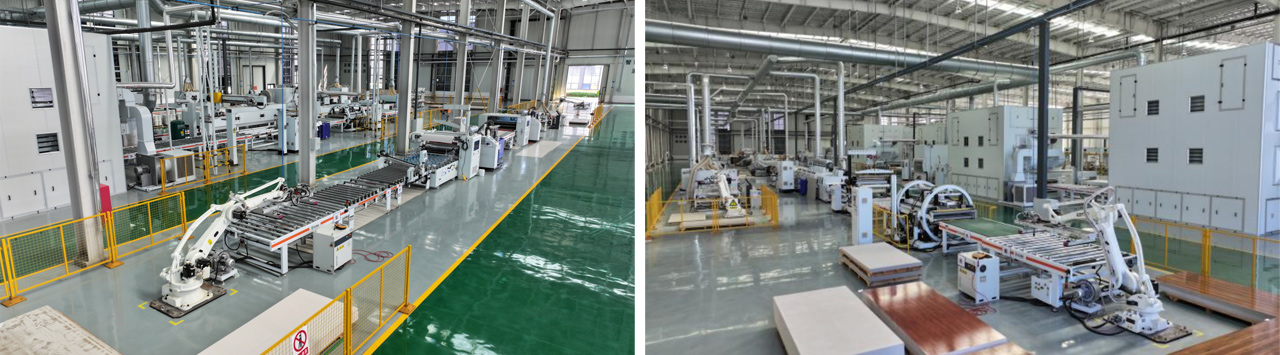

8. Fully automated production line
Corporate Mission
Develop a green industry and promote circular economy
Corporate Spirit
Intelligent, innovative, passionate, and responsible
Corporate Values
Customer first, best in class

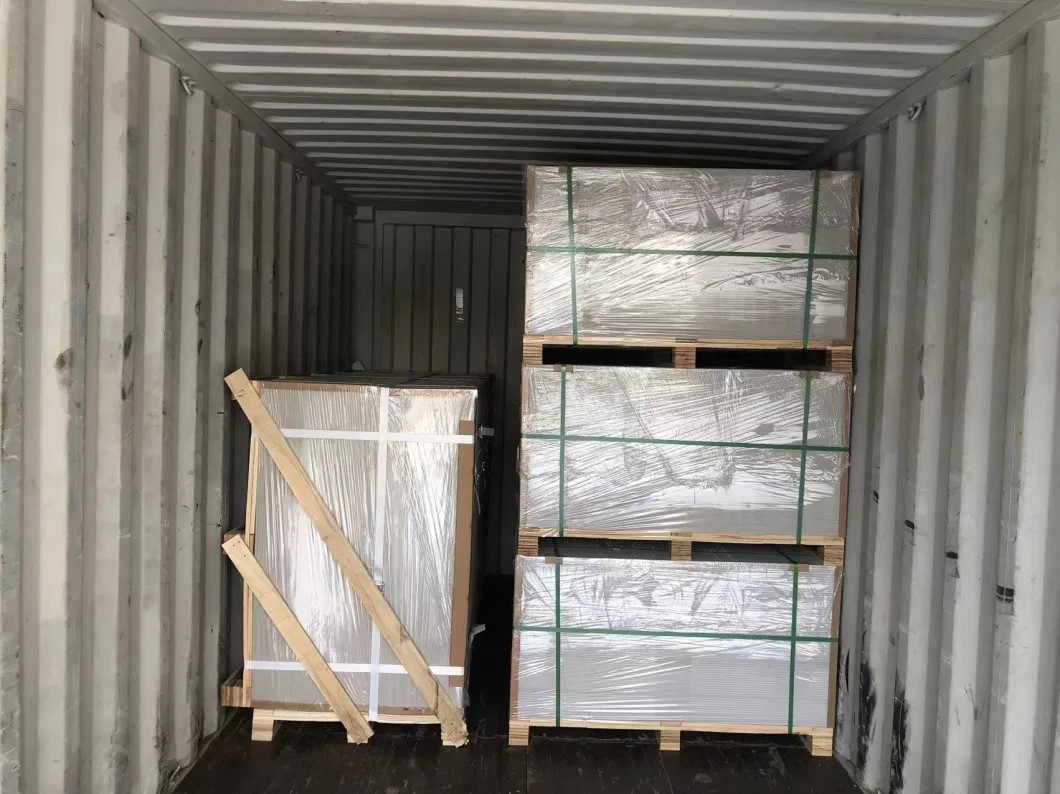

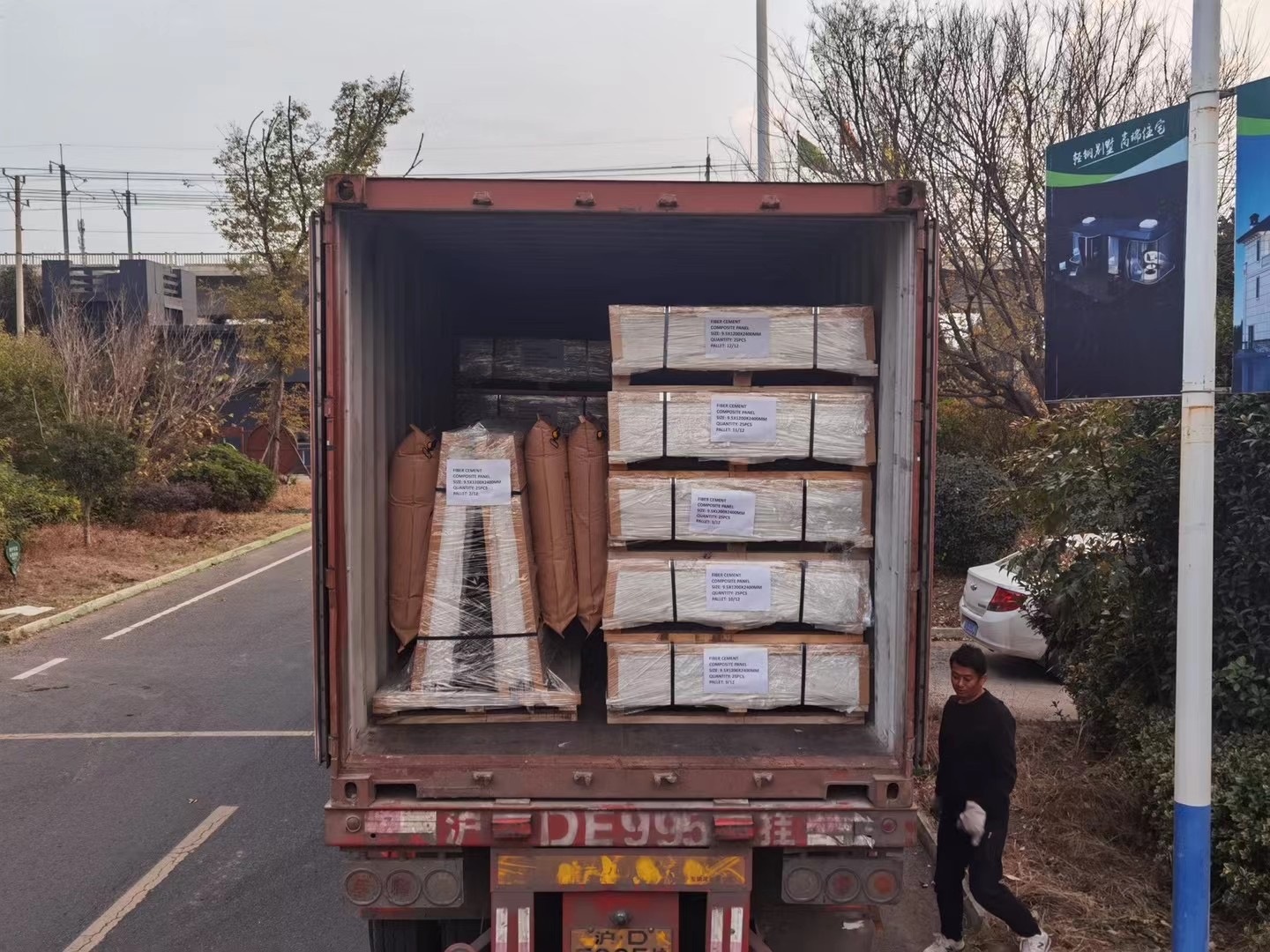

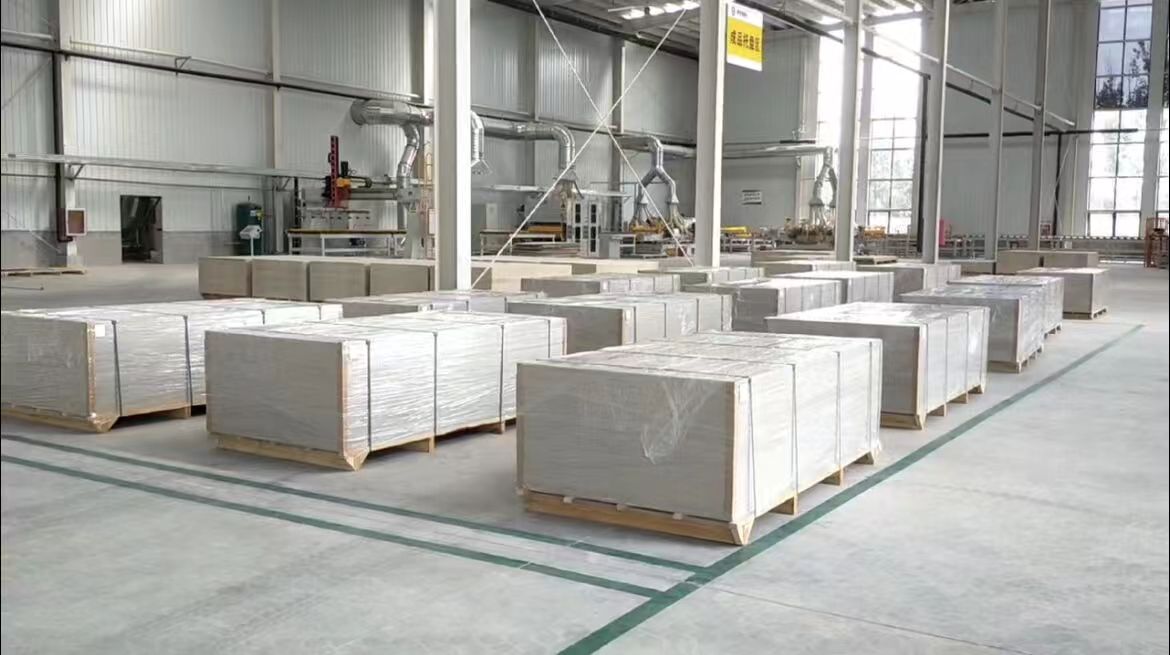

9. Loading and shipment

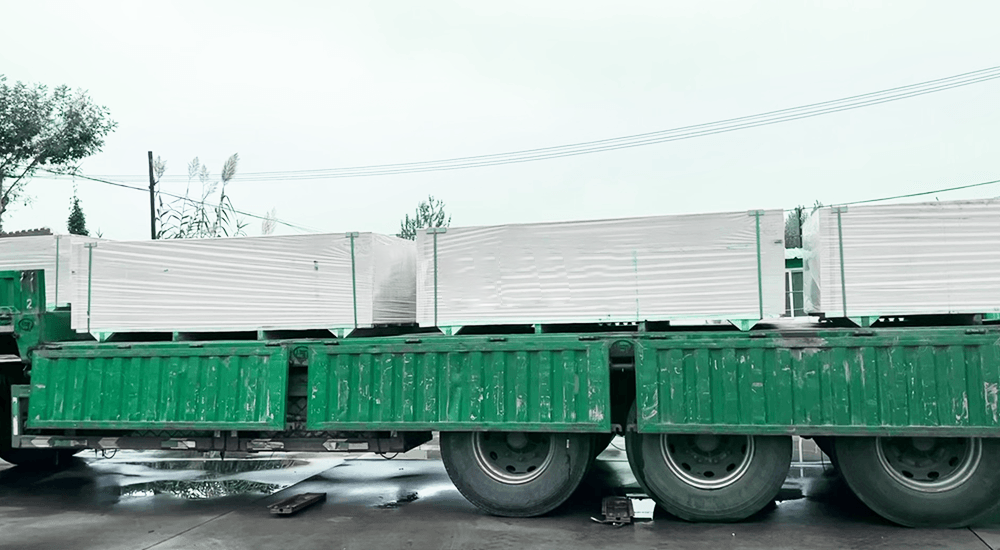

Packing: wooden pallets. 800pieces in 1*20GP /22mt; Truck delivery can load 33mt Max.
Q&A
More information you may want to know :
Q: Can you manufacture products according to sample ?
A: Yes, We can produce by your sample or technical drawing.
We have R&D team, we can also help to develop new molds and texture.
Q: What is your payment term ?
A: 30% deposit in advance, 70% before loading .
We will show you photos and packages before you pay the balance.
Q: What is your delivery time ?
A: Generally, around 10-14 days after confirmation of your deposit payment.
Specific time depends on order items and order quantity.
Q: How can I get the after service ?
A: We welcome your chats online (Chat or leave message: After service) or e-mail to us regarding any technical or related
questions that you may have.
