1. Product Introduction

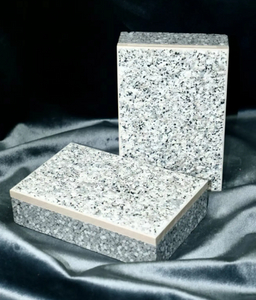

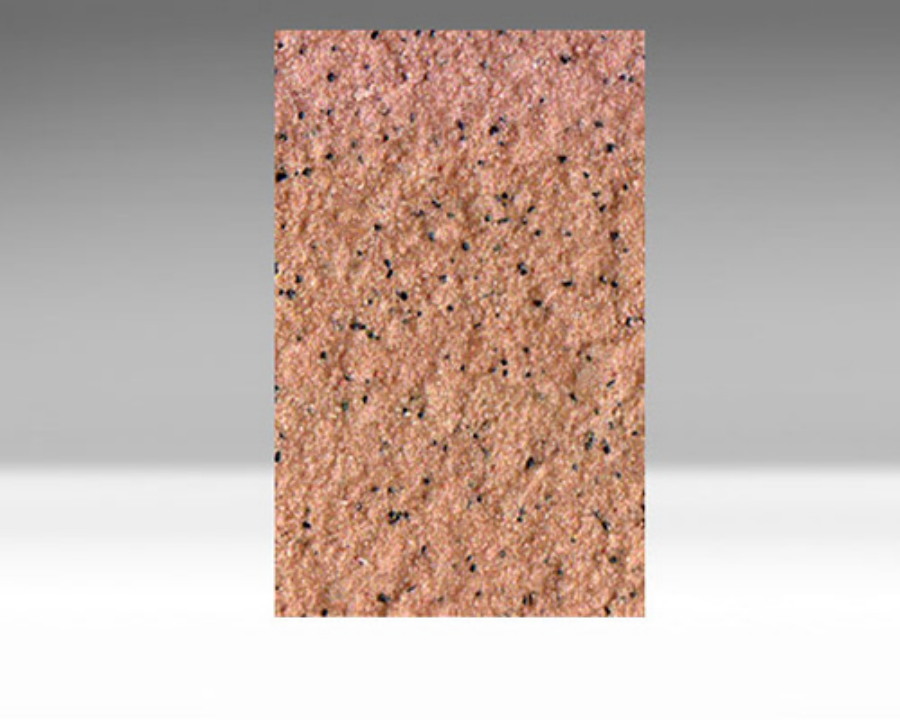

The real stone paint insulation integrated board is a type of imitation stone insulation integrated board, which is composed of XPS/EPS/PUR/phenolic/rock wool/A-level vacuum ultra-thin board insulation layer+inorganic resin board+strong composite adhesive+real stone paint. True stone paint is a water-soluble coating product that has a decorative effect similar to other stones such as marble and granite. It is composed of environmentally friendly acrylic resin, natural stone powder, and additives.Real stone paint has a stronger particle texture and a more tactile feel on the surface.
2. Product Features
It has the characteristics of non-toxic, odorless, fireproof, waterproof, acid and alkali resistant, strong adhesion that never fades, and good resistance to force and freeze-thaw, which can effectively prevent the erosion of buildings by harsh external environments and extend the life of buildings. It has the appearance and texture of natural stone, and can be customized with different patterns and colors according to needs. Has good weather resistance, color retention, and stain resistance, with a hardness comparable to granite, providing effective protection for buildings.
3. Technical standard
Attribute parameters | Performance index |
Swelling rate | ≤0.25% |
Water absorption rate | ≤500g/m2 |
Moisture content | ≤10% |
Thermal conductivity | ≤0.050W/(m.k) |
Impermeability | There is no infiltration inside the 24-hour system |
Bending load (not less than the weight of the board) | ≥21 N |
Impact resistance | First floor 10J, second floor and above 3J |
Radioactivity | Internal irradiation index: IRa: 0.2 External irradiation index Ir: 0.2 |
Asbestos | 100% asbestos free |
Formaldehyde release amount | 0 |
Combustion performance level | A2 |
Tensile bonding strength - original strength | ≥ 0.10MPa, damage occurs in the insulation material |
Tensile bonding strength - water resistance strength | ≥0.10MPa |
Tensile bonding strength - freeze-thaw resistance strength | ≥0.10MPa |
Acid resistance | 48 hours without any abnormalities |
Alkali resistance | 96 hours without any abnormalities |
Salt spray resistance | 500 hours without damage |
Aging resistance | 1000h without damage |
Dirt collection | ≤10% |
Adhesion | Level 0 |
Characteristics | Advantages of waterproof, fireproof, moisture-proof, sound-absorbing, high flexural strength, easy installation, environmental protection, etc |

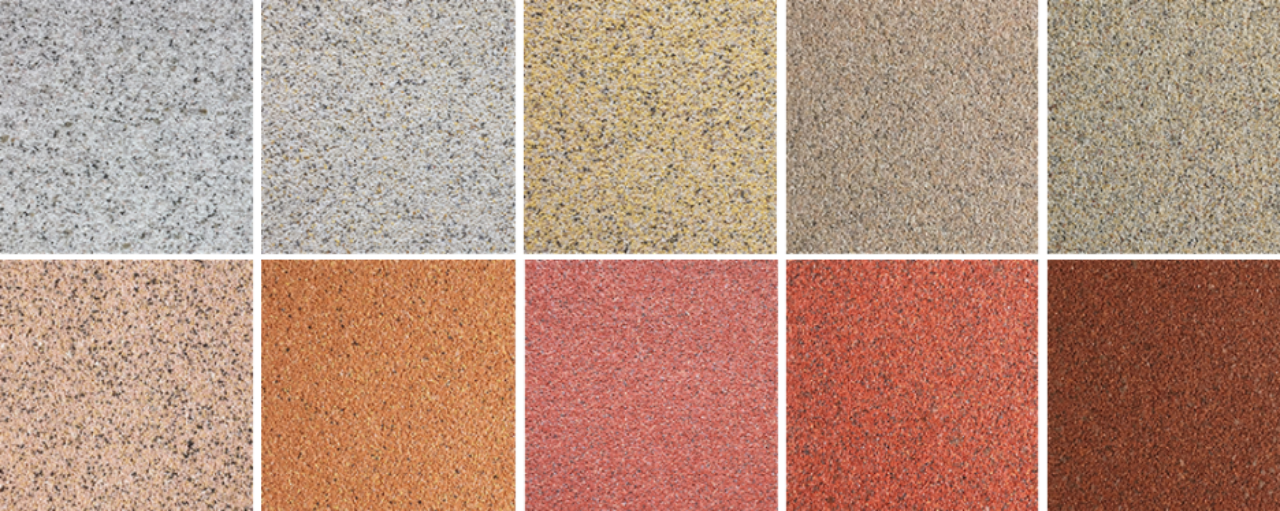

4. Product Color:
Rich variety of colors available for customization and selection
Installation method: Dragon bone installation
5. Application scenarios
Suitable for high-end office buildings, high-end residential buildings, government buildings, bank buildings, exhibition centers, office buildings, hotels, schools, hospitals, villas, etc

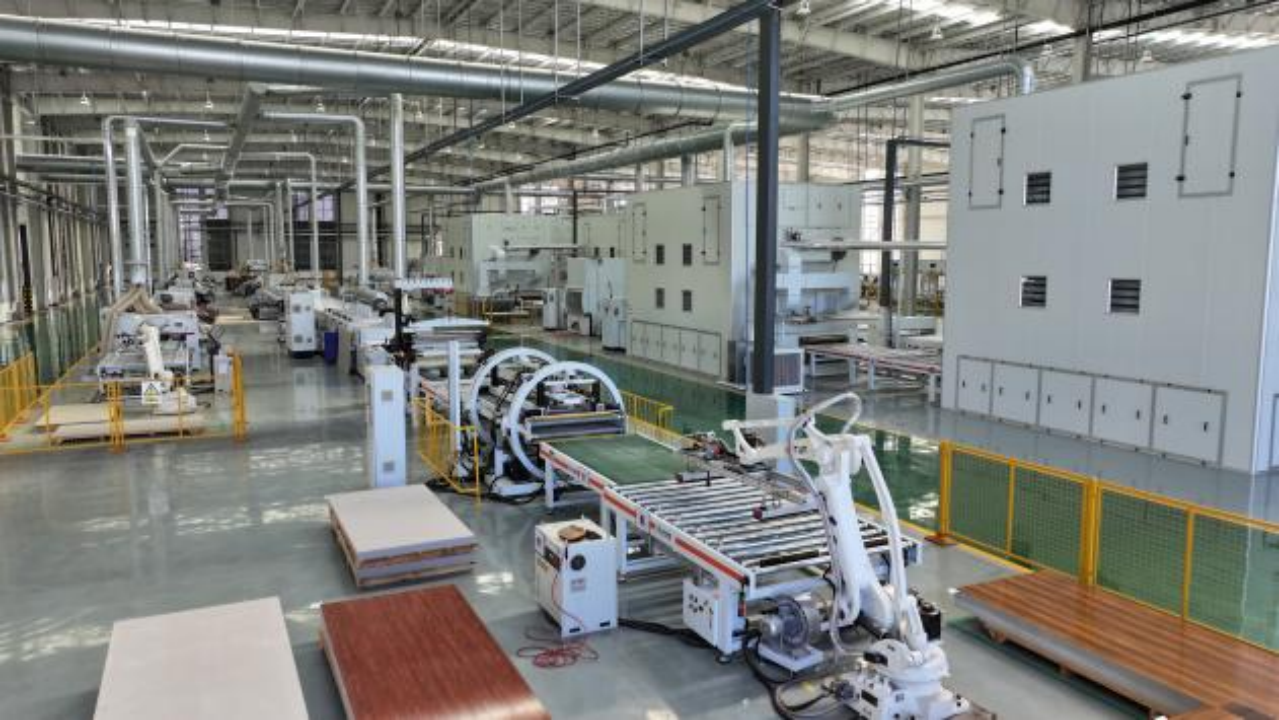

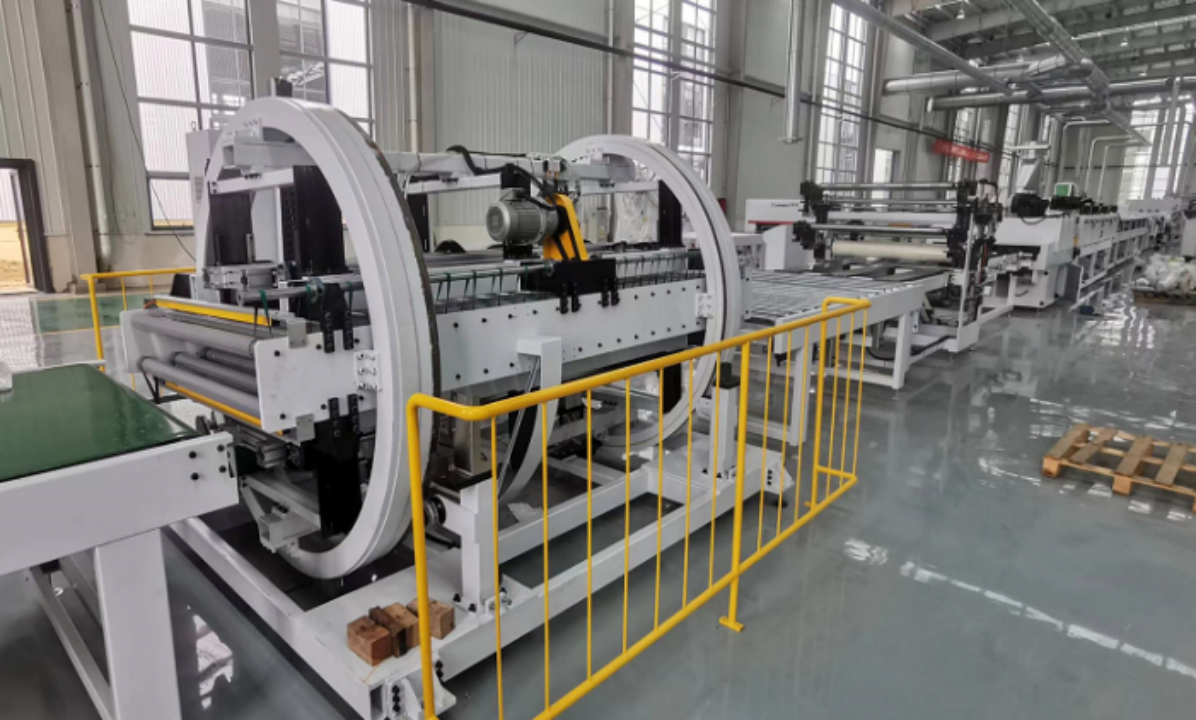

6. Workshop production line
Fully automated production line, ensuring quality and quantity to complete production, more efficient and convenient
7. Certifications
8. Loading and shipment
9. Q&A
More information you may want to know :
Q: Can you manufacture products according to sample ?
A: Yes, We can produce by your sample or technical drawing.
We have R&D team, we can also help to develop new molds and texture.
Q: What is your payment term ?
A: 30% deposit in advance, 70% before loading .
We will show you photos and packages before you pay the balance.
Q: What is your delivery time ?
A: Generally, around 10-14 days after confirmation of your deposit payment.
Specific time depends on order items and order quantity.
Q: How can I get the after service ?
A: We welcome your chats online (Chat or leave message: After service) or e-mail to us regarding any technical or related
questions that you may have.
