1. Product Introduction

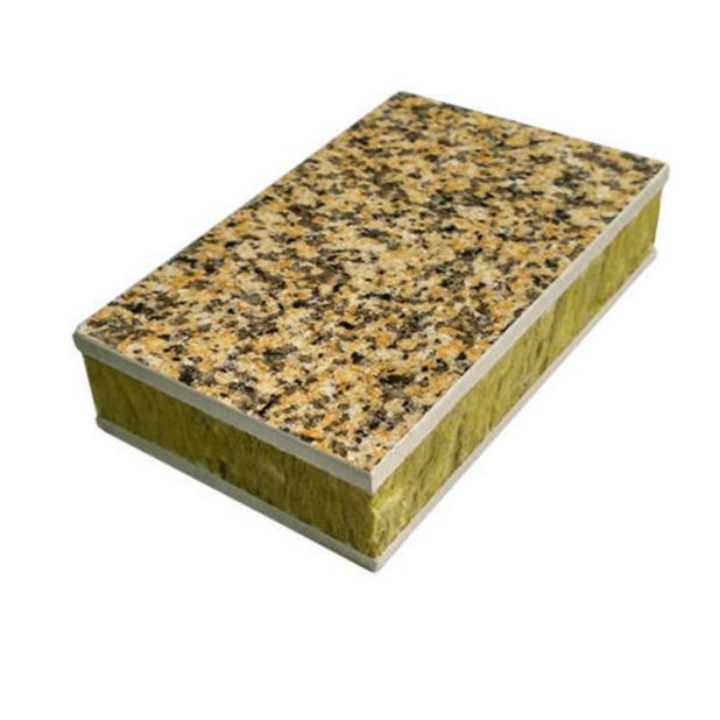

Water in water insulation integrated board is a building material that combines insulation and decorative functions, widely used in exterior walls of buildings. It can effectively isolate the influence of external temperature on indoor temperature, thus bringing you a comfortable living environment. This material not only has good insulation performance and strong durability, but also has the characteristics of waterproof and moisture-proof, and easy construction. Its core function is to maintain stable indoor temperature, saving you energy costs. Compared with traditional insulation materials, the water in water insulation integrated board has higher insulation performance and longer service life. Its innovation lies in combining insulation materials and decorative materials into one, saving construction costs and time.

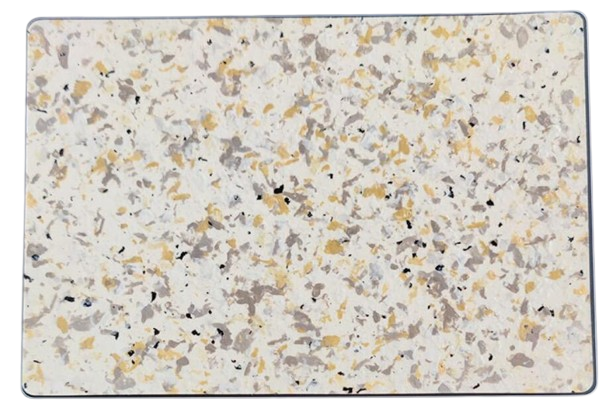

Water in water has a smooth touch and no graininess
2. Product Features
The water in water insulation integrated board is favored for its dignified and elegant stone decorative effect, strong weather resistance and impact resistance, easy maintenance, resistance to UV rays and wind and rain erosion, ensuring the long-lasting beauty of the building surface. It is also energy-saving, environmentally friendly, highly self-cleaning, pollution resistant, acid rain resistant, corrosion-resistant, highly decorative, and low-cost. Its construction is more convenient and fast.
3. Technical standard
Attribute parameters | Performance index |
Swelling rate | ≤0.25% |
Water absorption rate | ≤500g/m2 |
Moisture content | ≤10% |
Thermal conductivity | ≤0.050W/(m.k) |
Impermeability | There is no infiltration inside the 24-hour system |
Bending load (not less than the weight of the board) | ≥21 N |
Impact resistance | First floor 10J, second floor and above 3J |
Radioactivity | Internal irradiation index: IRa: 0.2 External irradiation index Ir: 0.2 |
Asbestos | 100% asbestos free |
Formaldehyde release amount | 0 |
Combustion performance level | A2 |
Tensile bonding strength - original strength | ≥ 0.10MPa, damage occurs in the insulation material |
Tensile bonding strength - water resistance strength | ≥0.10MPa |
Tensile bonding strength - freeze-thaw resistance strength | ≥0.10MPa |
Acid resistance | 48 hours without any abnormalities |
Alkali resistance | 96 hours without any abnormalities |
Salt spray resistance | 500 hours without damage |
Aging resistance | 1000h without damage |
Dirt collection | ≤10% |
Adhesion | Level 0 |
Characteristics | Advantages of waterproof, fireproof, moisture-proof, sound-absorbing, high flexural strength, easy installation, environmental protection, etc |

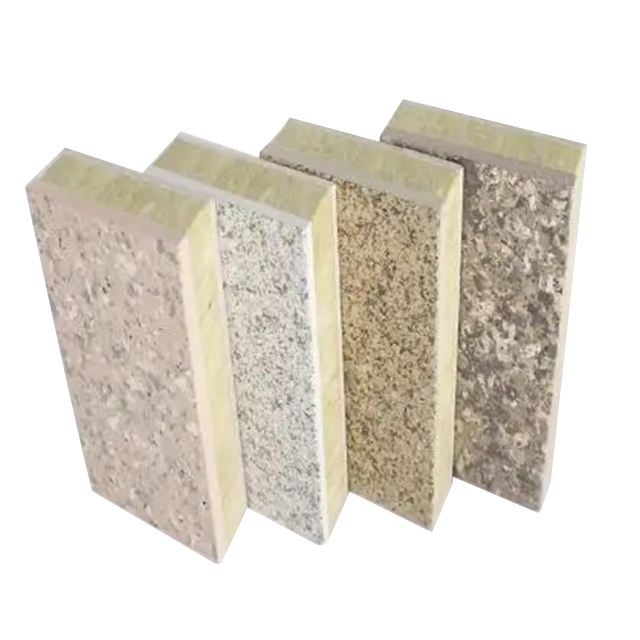

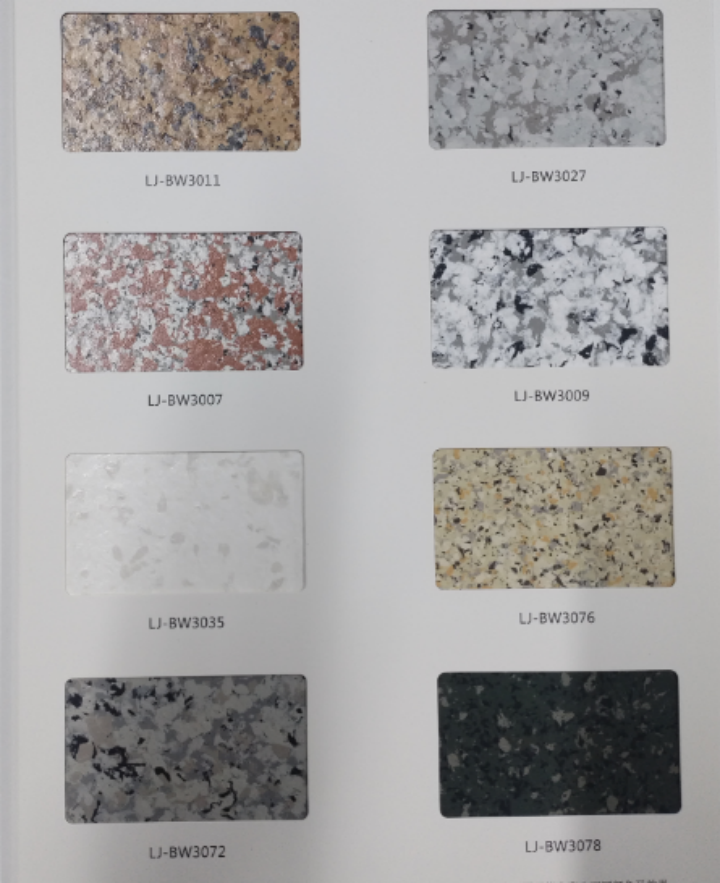

4. Product Color:
Rich variety of colors available for customization and selection
Installation method: Dragon bone installation

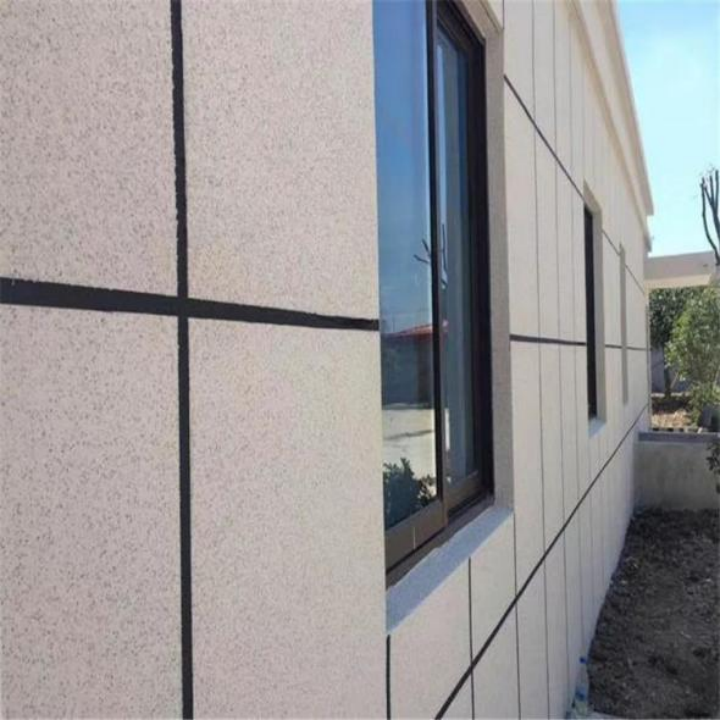

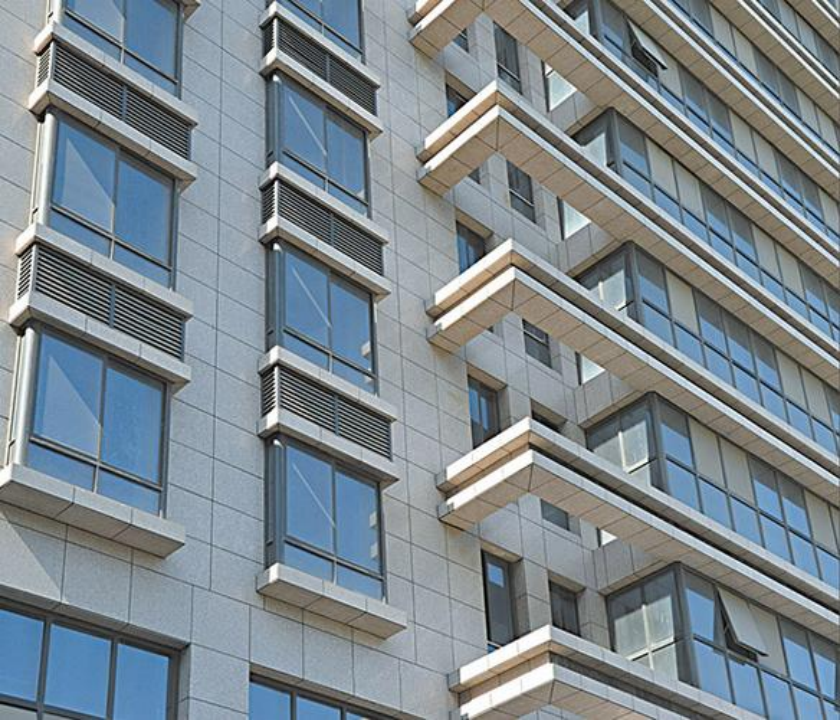

5. Application scenarios
Suitable for high-end office buildings, high-end residential buildings, government buildings, bank buildings, exhibition centers, office buildings, hotels, schools, hospitals, villas, etc

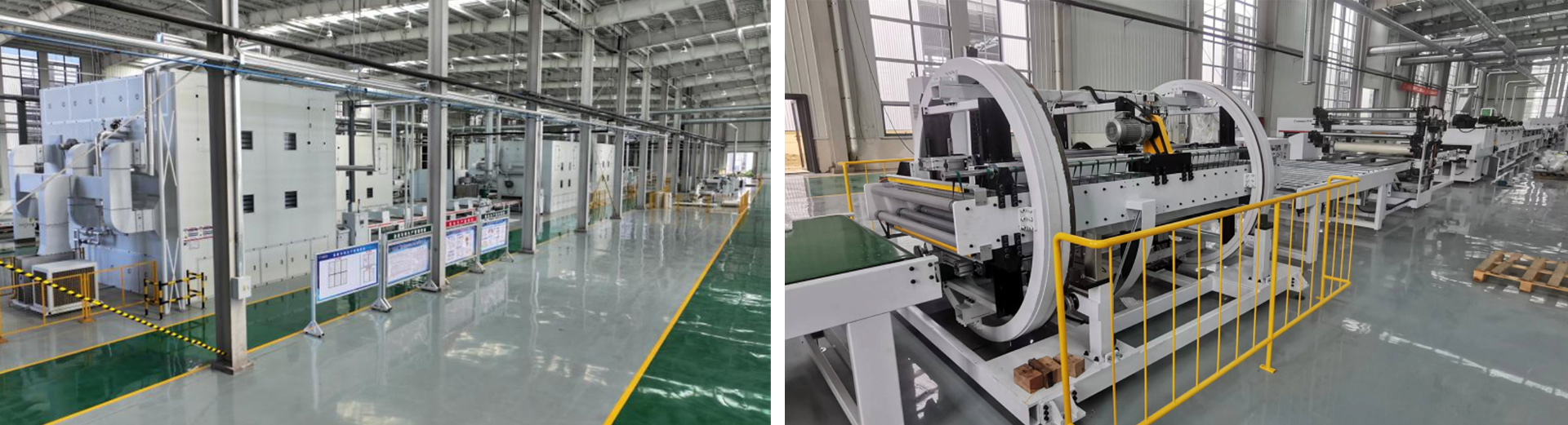

6. Workshop production line
Fully automated production line, ensuring quality and quantity to complete production, more efficient and convenient

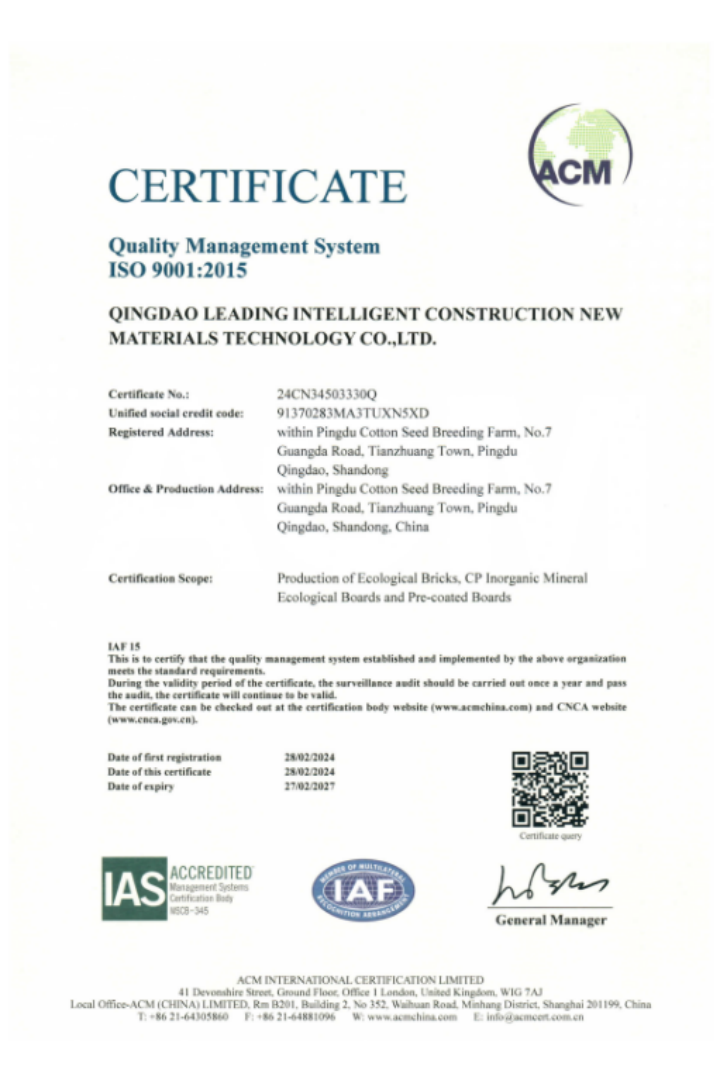

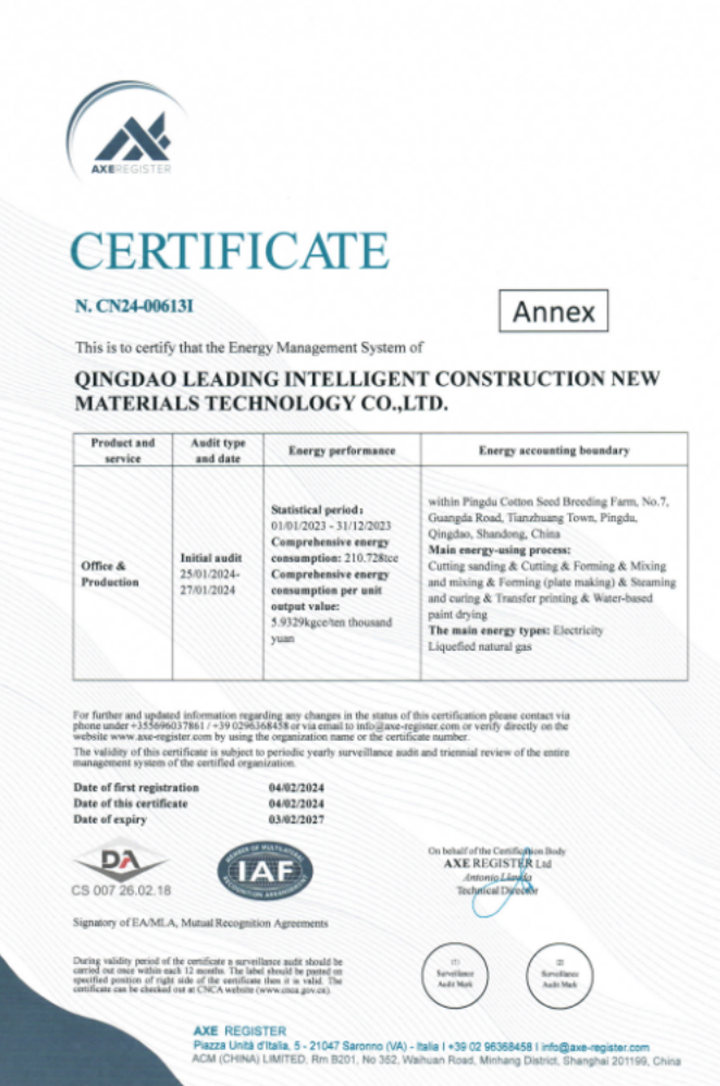

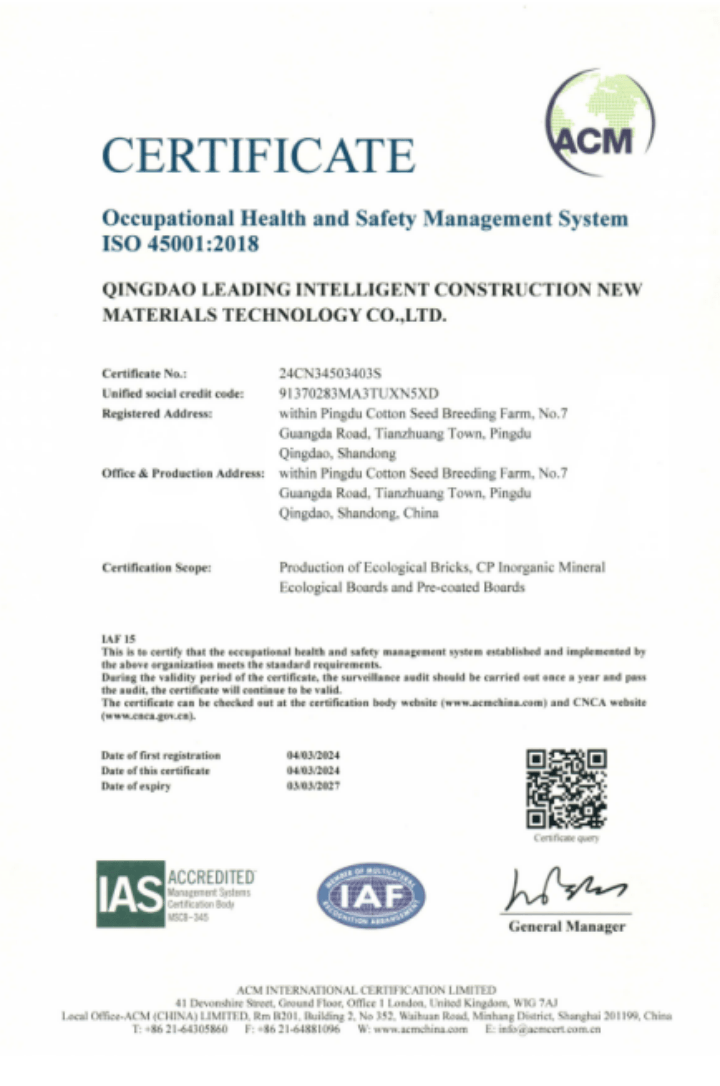

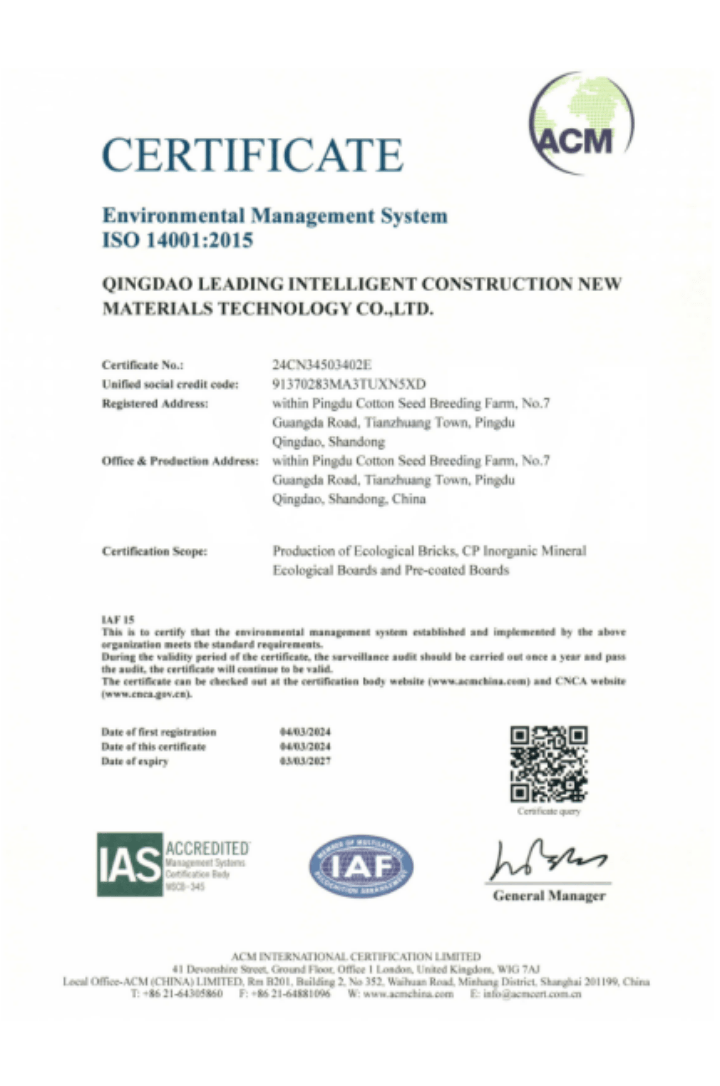

7. Certification qualifications
8. Q&A
More information you may want to know :
Q: What is your payment term ?
A: 30% deposit in advance, 70% before loading .
We will show you photos and packages before you pay the balance.
Due to the cost movement and thickness /width/weight /color treatment of different mould ,please contact us to get the exactly quotation brefore order start .Welcome contact us for more products information .
Daniel / WhatsApp:+86 18561883970
