1、Solid color Board:
Leader UV solid color pre coated board is a pre coated board with different solid colors formed by surface treatment, color roller coating, and UV curing on the basis of inorganic board

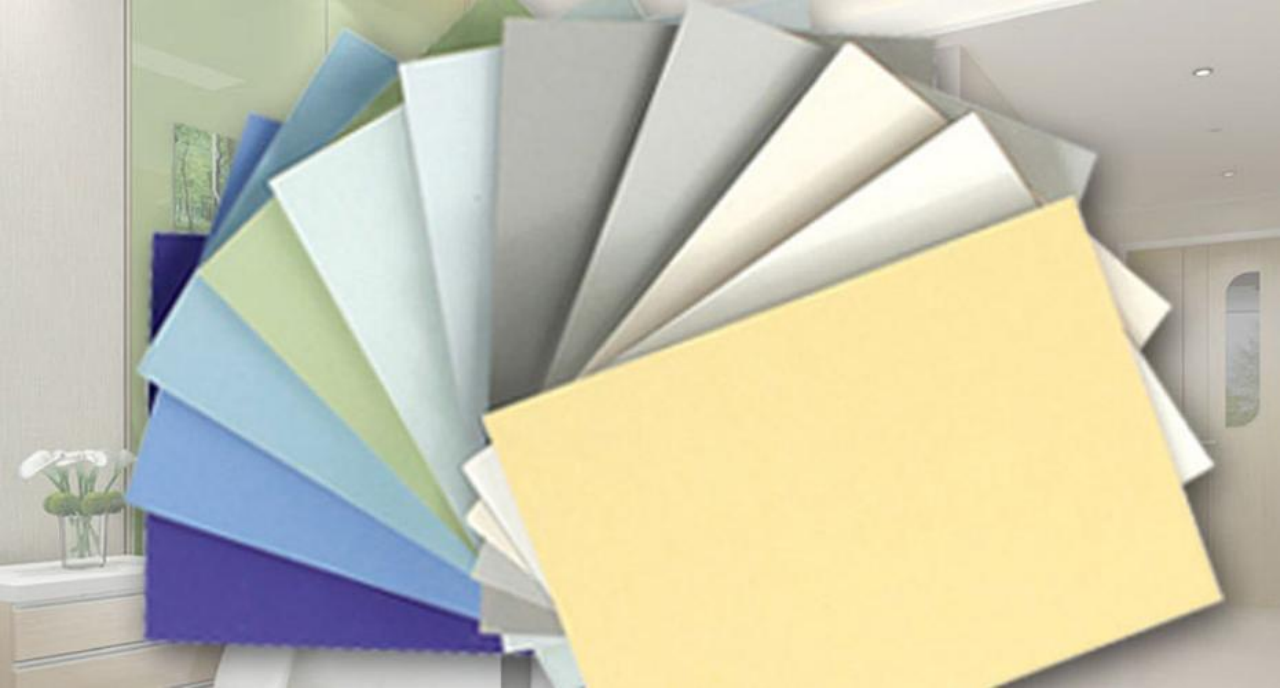

2、Product Color:
All colors can be customized without any color restrictions. It can be customized according to the building material standard color, and there may be slight color differences. If suggested, the color can be determined first, samples can be mailed, and the final color can be selected for production.
3、Product advantages:
1. Environmentally friendly and non-toxic: The substrate of UV monochrome coating board adopts asbestos free calcium silicate board as the substrate, which does not contain harmful substances and meets environmental standards, suitable for use in public places such as schools.
2. Strong UV resistance: The surface cured by UV light can effectively resist the exposure of sunlight and ultraviolet rays, avoiding color fading and surface damage.
3. Wear resistant and scratch resistant: With high surface hardness, it can effectively resist scratches and wear during daily use, maintaining a beautiful appearance.
4. Waterproof and moisture-proof: Its surface has good waterproof properties, suitable for humid environments, ensuring the durability and stability of school decoration.
5. Easy maintenance: The smooth surface makes daily cleaning and maintenance very easy, just wipe with clean water.
4、Antibacterial activity
Attribute parameters | Performance index |
Wet expansion rate | ≤0.25% |
Water absorption rate | ≤30% |
Moisture content | ≤10% |
Thermal conductivity | ≤0.35W/(m.k) |
Impermeability | 24 hours, no water droplets |
Flexural resistance (saturated strength) | ≥13MPa |
Impact resistance strength | ≥1.4kJ/m2 |
Radioactivity | Internal irradiation index: IRa:0.2 External irradiation index Ir:0.2 |
Asbestos | 100% asbestos free |
Formaldehyde release amount | 0 |
Non combustibility | 240 minutes |
Combustion performance level | A2 |
Frost resistance | No cracking or delamination occurred after 25 freeze-thaw cycles |
Surface adhesion (grid method) | Level 0 |
Gloss | Range: 2.4~2.5 |
Alkali resistance | No abnormalities such as bubbles, protrusions, powdering, etc., color difference ∆ E=1.5 |
Resistant to nitric acid | No abnormalities such as bubbling, protrusion, powdering, etc., color difference ∆ E=0.7 |
Solvent resistance (butanone) | Not revealing the bottom |
Pencil hardness | 8H |
Water resistance | 360 hours without any color loss, discoloration, blistering, wrinkling, peeling, rusting or other phenomena |
Wash ability | Wash 11000 times without revealing the bottom |
Dirt collection | 8.3 |
Resistant to artificial climate aging | 1000h without peeling, cracking, bubbling, discoloration level 0, powdering level 0 |
Antibacterial performance - Escherichia coli ATCC 25922 | Level I |
Antibacterial performance - Staphylococcus aureus ATCC 6538 | Level I |
Antibacterial durability performance - Escherichia coli ATCC 25922 | Level I |
5. Standard size
Thickness | Length | Width |
5mm | 2400mm-3050mm | 1220mm |
6mm | ||
8mm | ||
10mm | ||
12mm | ||
15mm | ||
18mm | ||
20mm |

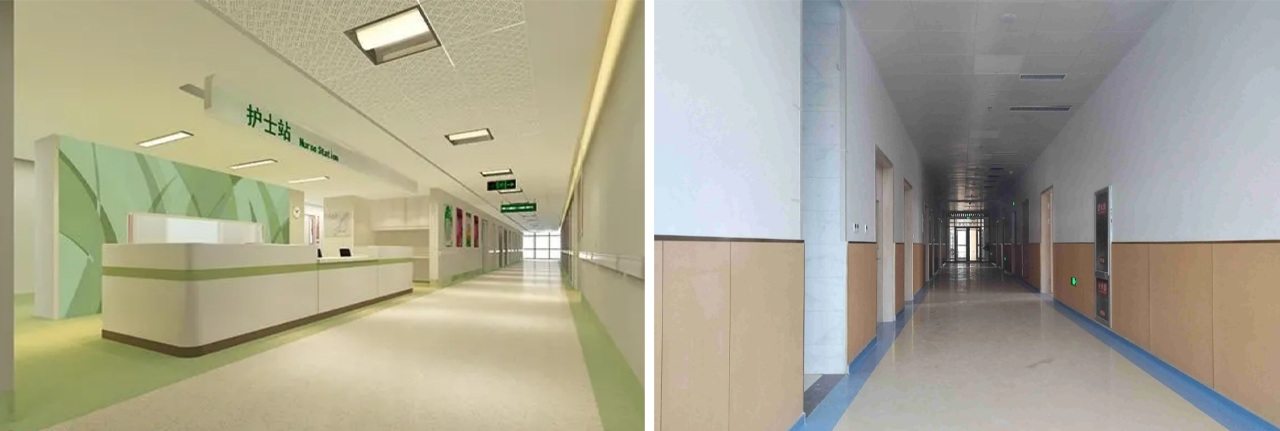

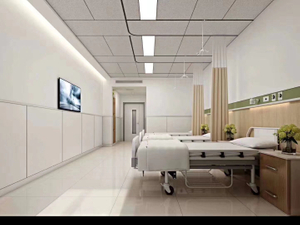

6、Applied range:
Indoor decoration projects for schools, hospitals, office buildings, residences,hotels,villas,etc
7、Installation method: adhesive method、Dragon bone installation
8、Certifications

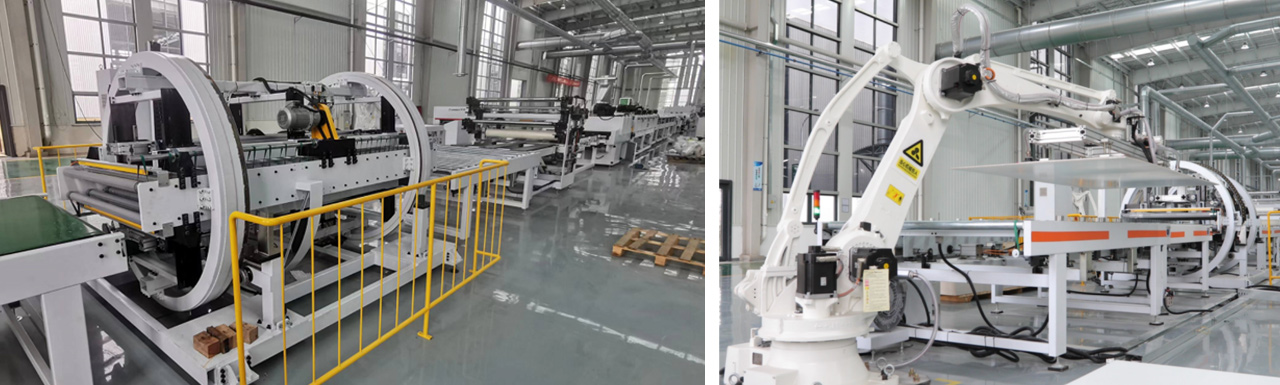

9. Production workshop
Corporate Mission
Develop a green industry and promote circular economy
Corporate Spirit
Intelligent, innovative, passionate, and responsible
Corporate Values
Customer first, best in class
10. Q&A
More information you may want to know :
Q: What is your delivery time ?
A: Generally, around 10-14 days after confirmation of your deposit payment.
Specific time depends on order items and order quantity.
Q: How can I get the after service ?
A: We welcome your chats online (Chat or leave message: After service) or e-mail to us regarding any technical or related questions that you may have.
Daniel / WhatsApp:+86 18561883970
