1. Introduction:

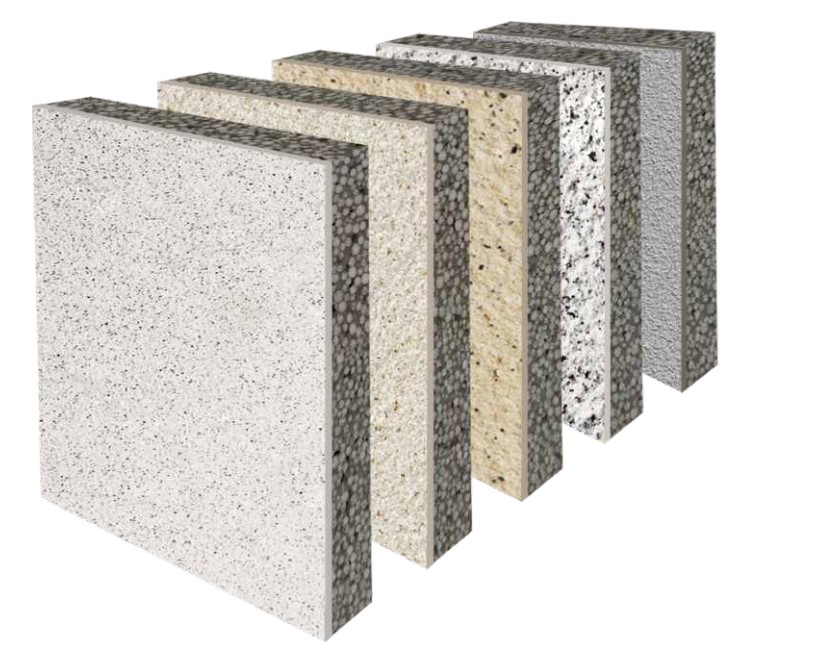

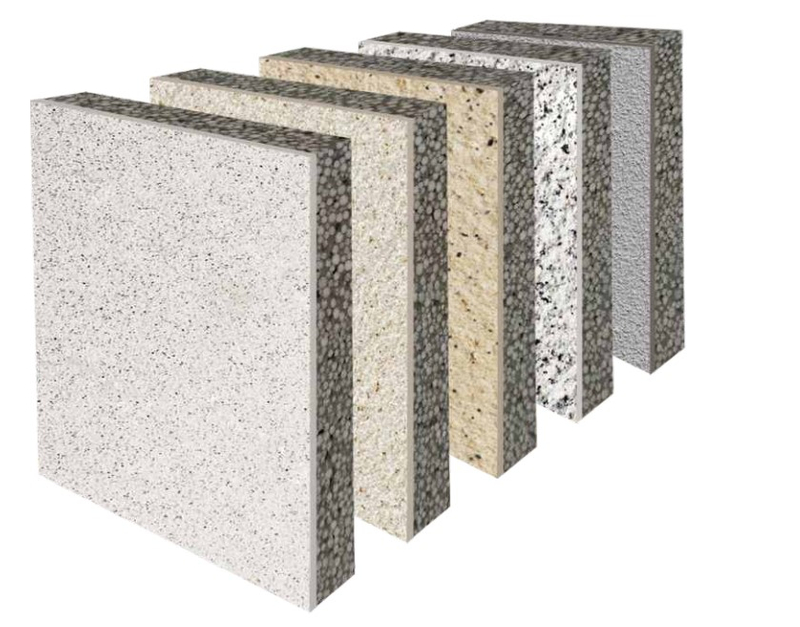

Exterior wall integrated board is a kind of building exterior wall material that integrates multiple functions. It has been widely used in the field of modern architecture with its unique advantages. The exterior wall integrated board is usually composed of a multi-layer structure, including the base layer, insulation layer, decorative layer and waterproof layer, etc. These layers are closely combined and work together.

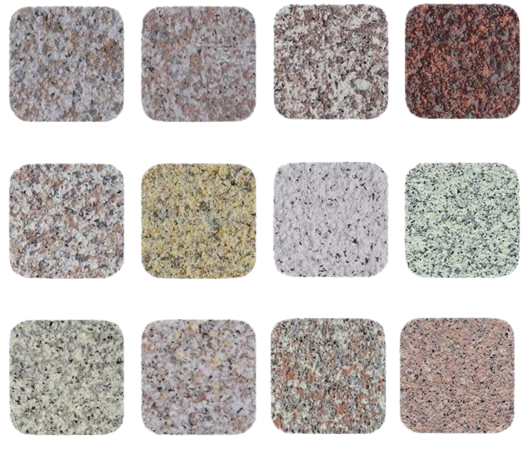

The sand-in-water paint is a product that imitates bush-hammered surface granite. The product has successfully broken through the technology barrier of high suspension multi-layer dispersion for solid and liquid fusion, and combines water-in-water and real stone paint products in recipe production. Its pattern has a stronger sense of three-dimensionality and hierarchy, while the product’s weather resistance and crack resistance are also more excellent.
The water-in-water paint is a high-end-stone-like paint for which the cladding and suspension technologies are adopted to clad and mix varied colorful paint granules in a transparent emulsion. Such paint has enriched colors but is inferior to real stone paint regarding air permeability and weather resistance.
2、Product Features
Non-toxic, fireproof
Water and moisture proofing
High resistance to wear
Sound and thermal insulation
Resistance to deformation
Easy to install
Super-long service life.
Safe and harmless
3、Technical standard
Attribute parameters | Performance index |
Wet expansion rate | ≤0.25% |
Water absorption rate | ≤500g/m2 |
Moisture content | ≤10% |
Thermal conductivity | ≤0.050W/(m.k) |
Impermeability | There is no infiltration inside the 24-hour system |
Bending load (not less than the weight of the board) | ≥21 N |
Impact resistance | First floor 10J, second floor and above3J |
Radioactivity | Internal irradiation index: IRa: 0.2 External irradiation index Ir: 0.2 |
Asbestos | 100% asbestos free |
Formaldehyde release amount | 0 |
Combustion performance level | A2 |
Tensile bonding strength - original strength | ≥ 0.10MPa, damage occurs in the insulation material |
Tensile bonding strength - water resistance strength | ≥0.10MPa |
Tensile bonding strength freeze-thaw resistance strength | ≥0.10MPa |
Acid resistance | 48 hours without any abnormalities |
Alkali resistance | 96 hours without any abnormalities |
Salt spray resistance | 500 hours without damage |
Aging resistance | 1000h without damage |
Dirt collection | ≤10% |
Adhesion | Level 0 |
Characteristics | Advantages of waterproof, fireproof, moisture-proof, sound-absorbing, high flexural strength, easy installation, environmental protection, etc. |

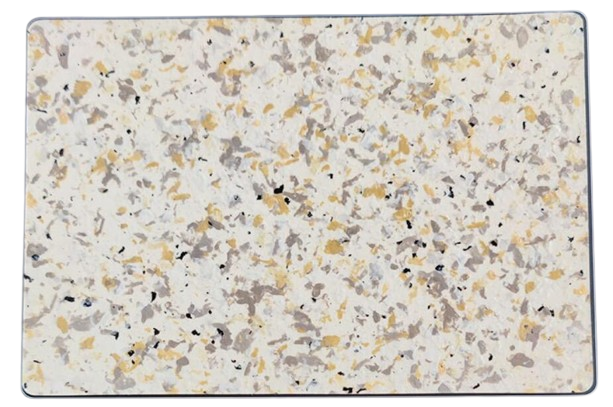

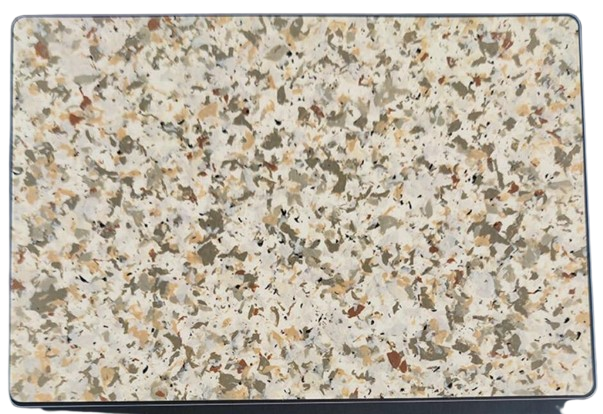

4. Surface board color
Installation method: keel and anchor installation

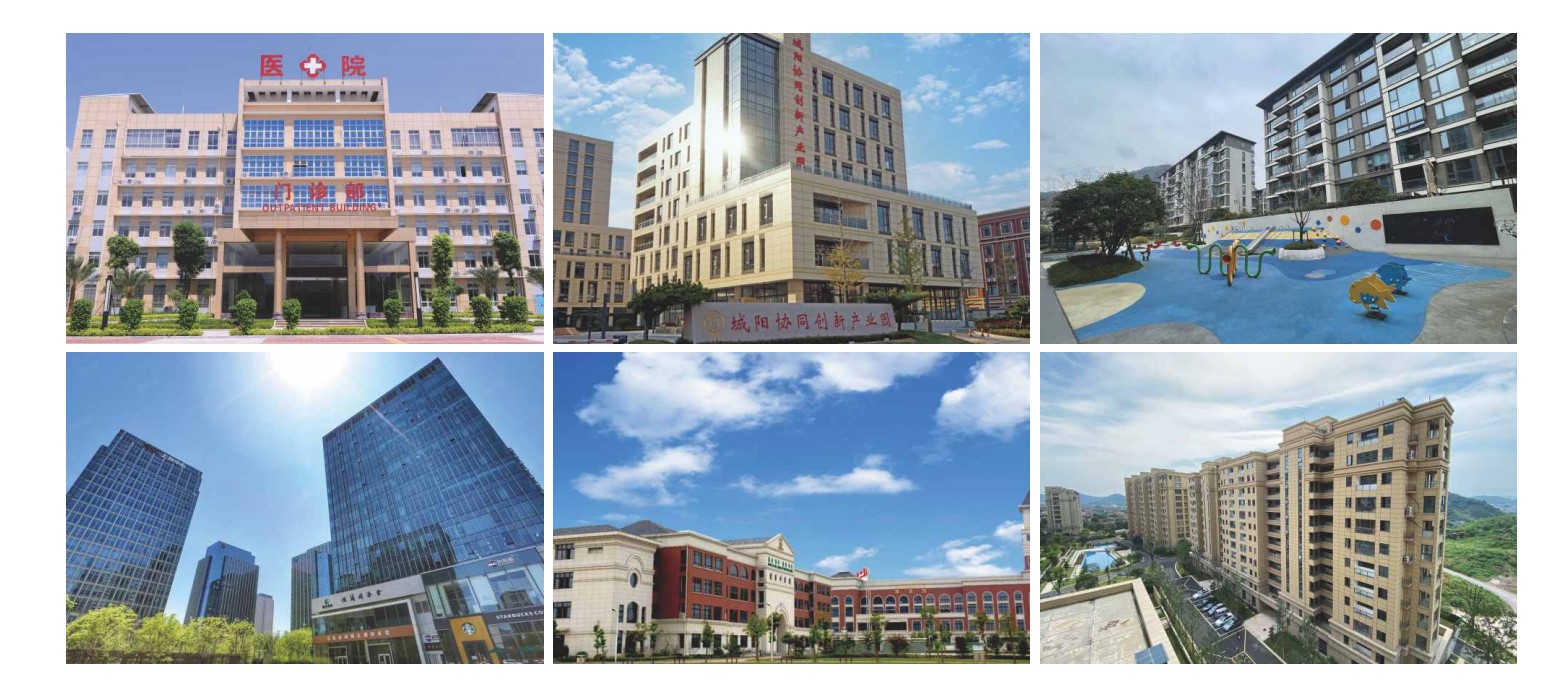

6. Application
Widely used in building interior and exterior walls, steel structure buildings, exhibition centers, and municipal construction, it provides efficient and beautiful solutions for modern architecture

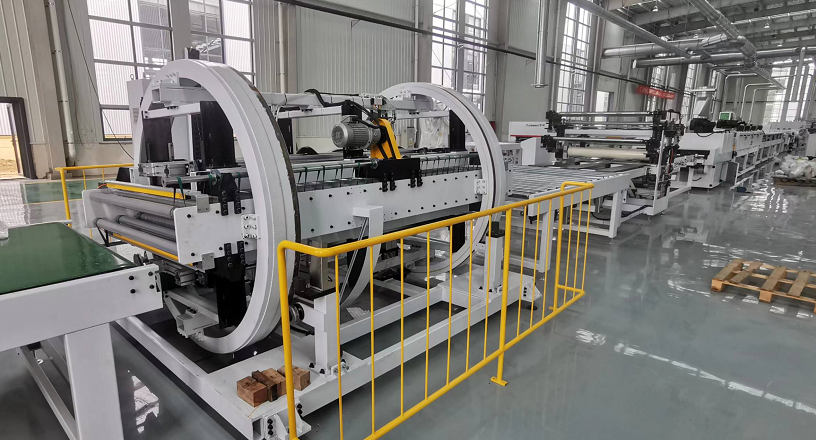

7、Workshop production line
Dust free production workshop, fully automated production equipment
8. FAQ
Q1: Are you a manufacture or trader?
A2: We are truly a manufacturer, plant located in Qingdao with a total investment amount $140million, we not only can provide the high quality products with the competitive price, but also can offer the best pre-sale service and after-service.
Q2: How can you control your quality?
A2: For each production processing, Leader Group has complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be issued along with that batch of goods.
Q3: What is your lead time?
A3: It usually needs about 10- 15 days after confirmation of your deposit payment.
Specific time depends on order items and quantity.
Q4: What is your term of delivery?
A4: We accept EXW, FOB, CFR, CIF, CPT, CIP etc. Choose the one which is the most convenient or cost effective for you.
Q5: Do you provide free samples?
A5: Yes, free samples are available, generally speaking, the buyer shall bear all the delivery cost.
Q6: Can you manufacture products according to sample?
A6: Yes, We can produce by your sample or technical drawing.
We have R&D team, we can also help to develop new molds and texture.
Q7: What is your payments terms?
A7: We prefer 30% deposit, 70% balance before loading and delivery to the port, or by the LC, or other negotiable payment terms. We will show you photos and packages when loading materials into containers.
Q8: Can we visit your company?
A8: Yes, for sure, you are welcome to visit Leader Group Company.
Q9: What standards do you have?
A9: Our products meet the standards, such as ISO、ASTM/ANSI、EN、AS/NZS、GB/T、JC/T etc. The third party testing is all available for us.
